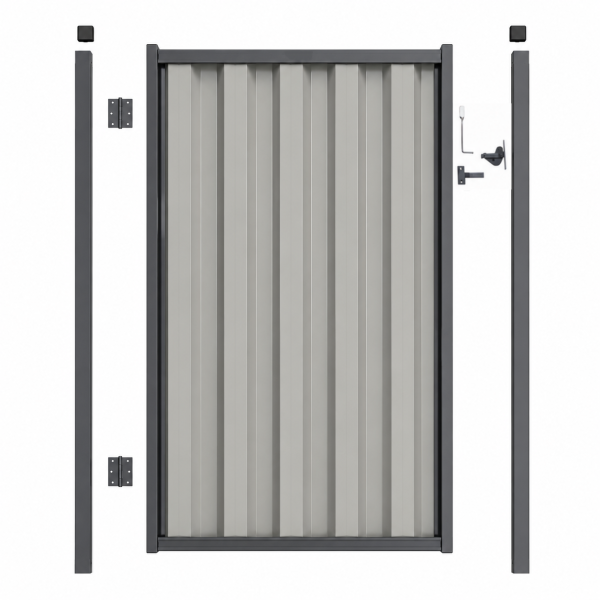

Metline® Gate Kit – COLORBOND® Steel
A sleek flat-line profile, perfect for achieving a clean, contemporary look.
One kit. One gate. Done.
The Metline® Gate Kit takes the guesswork out of gate building. Every component you need is included — from the Metline® profile infill sheets and gate style frames, right through to the hinges, D-latch, C-Posts, screws, and caps. Just pick your height, width and colour, and you’re ready to build.

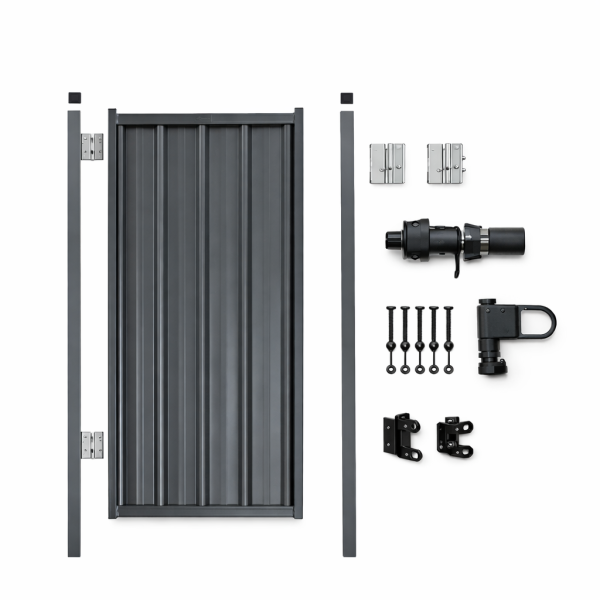

What’s Included
- Metline® Powder-coated Gate Style Pair — Structural framing for both sides of the gate
- Metline® infill sheets – smooth vertical line profile
- COLORBOND® fence rails – top and bottom support
- 65×65mm powdercoated C-Posts – 2400mm for heights up to 1800mm, 3000mm for 2100mm height
- D-Latch & striker, butt hinges, black plastic post caps (50mm & 65mm), arm/lever zinc – all hardware included. Lockable drop bolt included with Double gate size only
- 12×14×20mm hex head gate screws – colour-matched for fixing rails to C-Posts
- 10×16×16mm coloured panel screws – for securing infill sheets to gate styles
Available Heights
- 1200mm
- 1500mm
- 1800mm
- 2100mm
Available Widths
- 910mm – single pedestrian gate
- 1670mm – wide single gate
- 3325mm – double driveway gate
These are the maximum widths these gates can be built to with the provided materials. This is an ‘inside post’ measurement, not including spacings required for hardware and C-Posts. Rails and sheets can be cut on site to fit any desired narrower gate width.
