Description

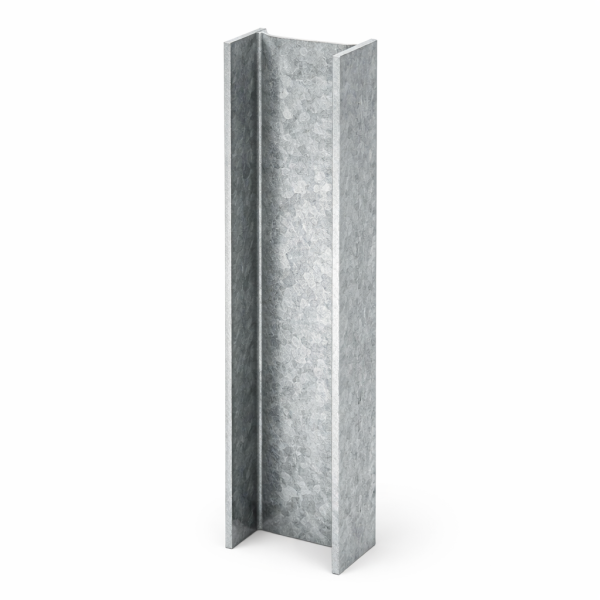

The 100PFC Steel C-Post is the parallel flange channel (C-section) end post for concrete sleeper retaining walls. Where the 100UC H-Post has two channels (for accepting sleepers from both sides), the 100PFC C-Post has a single channel — making it the correct choice for the ends of a retaining wall run, corners, or any position where only one side of the post will hold sleepers.
A typical retaining wall needs two C-Posts (one at each end) with H-Posts at intermediate spacings. Both types are concreted into the ground before sleepers are installed.
Available Lengths & Pricing
| Length | Price | Note |
|---|---|---|
| 800mm | $29.95 | In stock |
| 1000mm | $33.95 | In stock |
| 1200mm | $39.95 | In stock |
| 1600mm | $52.95 | In stock |
| 2000mm | $66.95 | In stock |
| 2400mm | $79.95 | In stock |
| 2800mm ★ | $92.95 | Special Order |
| 3200mm ★ | $105.95 | Special Order |
| 3600mm ★ | $119.95 | Special Order |
★ Special Order sizes require additional lead time.
Specifications
| Dimension | Detail |
|---|---|
| Section | 100PFC (Parallel Flange Channel — C-section) |
| Material | Galvanised steel |
| Compatible sleepers | 75mm and 80mm concrete sleeper panels |
| Use position | End posts and corners |
| Sold as | Individual post |
H-Post vs C-Post
Use H-Posts (100UC) for intermediate positions along the wall. Use C-Posts (100PFC) at each end of the wall run. Most retaining walls need 2 × C-Posts and the remaining posts as H-Posts spaced to suit your sleeper length.
